Buckwheat Processing Plants
Buckwheat Processing Plant

Buckwheat Processing Plant

Finished product:Buckwheat kernels

Production capacity:10-1000Ton/Day

Core equipment:Cooking Machine, Asphalt Dryer, Buckwheat Dehuller, Fryer, Cooler, Steam-heat Exchanger, Anti Crushing Conveying Equipment, Cleaning and Dedusting equipment, etc.

PROCESS OVERVIEW

  WinTone, specialized for more than 25 years in buckwheat dehulling,  masters, in addition to the traditional process for the production of husked buckwheat - a globally unique process, i.e. the wet husking of buckwheat.

  Processing of buckwheat includes cleaning, dehulling, and milling. The aim of dehulling is to separate the groats from the hulls by impact or abrasion of seed against emery stones or steel followed by air or screen separation of groats and hulls. We offer a wide range of dehulling and hull separation processes which you can tailor to your own product.

  The following overview shows machines which are used for the processing of buckwheat. Here, you can find more information about various machines.


Buckwheat
Cleaning

Hulling

Sorter and grader

Bagging

Buckwheat kernels
Cleaning
Intake and pre-cleaning:
Pre-cleaning is key for a productive milling process. Buckwheat contain impurities and foreign materials. Remove them before storage to increase the service life of your machinery and to create hygienic storage conditions.
Cleaning:
Use the cleaning section to remove contaminants and impurities from the buckwheat.
Features:
—Low power consumption;
—Good cleaning effect;
—Easy operation, low maintenance.
Hulling
High capacity hulling
We have developed hullers especially for buckwheat. These are high-capacity and energy-efficient machines, designed to keep brokens to a minimum.
Features:
Complete separation of buckwheat and husks;
Low broken rate.
Optical sorter and grader
Remove even subtle impurities
Our optical sorters remove even subtle light and dark color defects, spots, damaged grains and foreign materials. You can even sort based on shape.
Grader
We have designed special grading machines for buckwheat to provide an even distribution of product and an even result.


FEATURE

  • High quality products

    With the improvement of processing technology, the utilization rate of various nutrients and functional components including crude protein, crude fat, carbohydrate, ash and flavonoids.

  • No loss of nutrition

    On the basis of Tartary Buckwheat fragrant rice technology, the change of soaking from soaking to soaking is not only conducive to the migration of water-soluble components.

  • Increase the content of resistant starch

    The addition of cooking process and drying process parameters optimization is more conducive to starch gelatinization, promote the formation of resistant starch, improve the content of resistant starch.

  • Secondary dedusting system

    Adopting the secondary dust removal system ensures that there is no dust leakage in the production line and improve safety and health standard

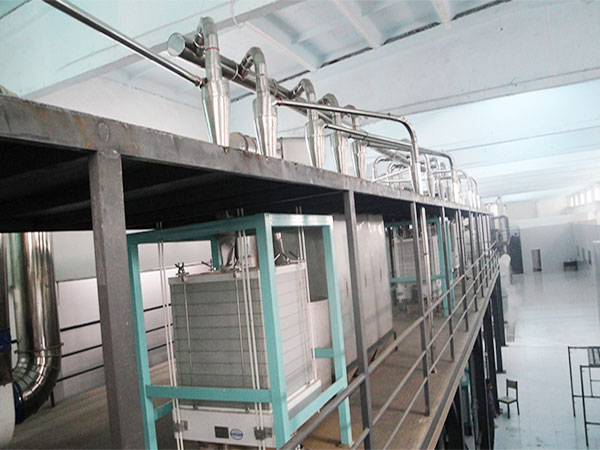

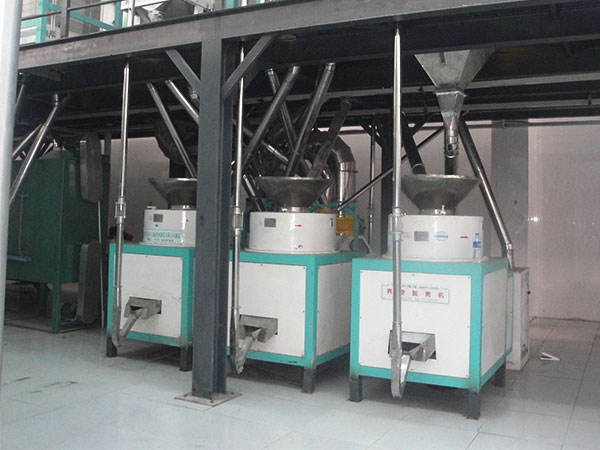

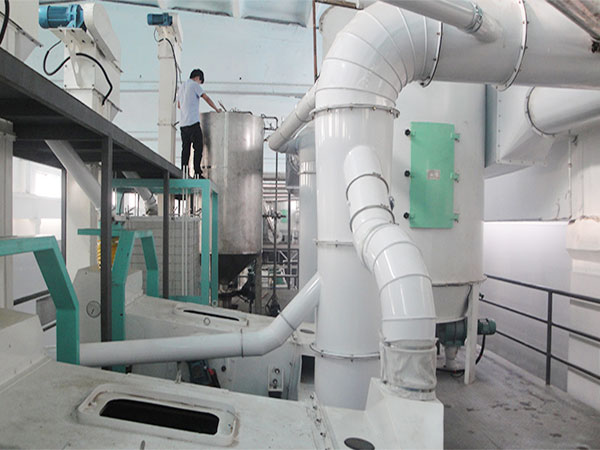

EQUIPMENT DISPLAY

  • Buckwheat Processing Plant
  • Buckwheat Processing Plant
  • Buckwheat Processing Plant

FINISHED PRODUCTS

Buckwheat Processing Plant FINISHED PRODUCTS

TECHNICAL INDEX

Processed products Utilization rate of nutrients (%)
Crude protein Crude fat Carbohydrate Ash content Flavone
Buckwheat flour 34.57 53.70 45.76 15.85 13.65
Buckwheat rice 78.95 88.88 60.08 60.58 66.44
Total nutrition buckwheat rice 89.58 96.72 63.86 65.10 77.78

Please feel free to contact us if you have any questions.
