GRAIN PROCESSING PLANT EQUIPMENTMANUFACTURER IN CHINA
Which machine are you looking for?
Corn/Maize Processing Plants
100TPD Corn Grits and Flour Production Line

100TPD Corn Grits and Flour Production Line

Finished product:Graded maize grits and graded flour.

Production capacity:50-300Ton per day

Core equipment:Pre-cleaner, Vibrating Sifter, Gravity Destoner, Peeling Machine, Polishing Machine, Degerminator, Germ Extractor, Milling Machine, Double Bin sifter, Packing Scale, etc.

PROCESS OVERVIEW

corn milling production process
  Technological process

  1. Raw grain cleaning section: one screening, one stone removing, one magnetic separation. Equipped with winnowing system, it can remove the big and small impurities.

  2. Peeling and degerming section: it adopts the process of twice peeling, once polishing, twice screening and once fine section.

       1) Twice peeling, once polishing can ensure effective peeling and germ removing, and separates the flour and bran by air suction system.

       2)Screening: it separates the material according to sizes and quality.

       3)Fine selection: according to different gravity, it separates the bran and broken germs from the material by the joint action of cowl flap and airflow.

  3.Corn grits section: it adopts the technology of fine grits making, flour brushing, screening classifying and suspending.

      1)Corn fine grits:it smashes the material into grits and grinds the albumen with small hardness into fine powder.

      2)Flour brushing:it separates the white flour from the material.

           3)Screening:it classifies the material according to sizes.

      4)Suspension: it separates the small bran from the grits by airflow according to different gravity.

  4.Flour milling section: it adopts the technology of several times of grinding and screening.

       1)Grinding: the material enters into the grinder and is ground into fine flour.

       2) Screening: it separate the fine powder from the material.

  5. Measuring and packaging section: the warehouse can reduce amount of labor. The measuring package can adopts manual method or electrical method.

FEATURE

  • Technology and automation

    Reliable automation enhances productivity, reduces energy consumption and minimizes maintenance.

  • Professional Services and Training

    The professional grain processing technology designers and commissioning engineers team can ensure the advanced technology, which can reduce energy consumption.

  • Professional Manufacturer

    Over 25 years of experience makes us have the ability to provide you with the most professional suggestions in design, manufacturing, installation and project management.

  • Effectiveness for maximum yield

    We develops integrated technology for producing premium-quality corn products. Flexible processing enables maximum yield through efficient cleaning, conditioning and degermination, up to final grinding.

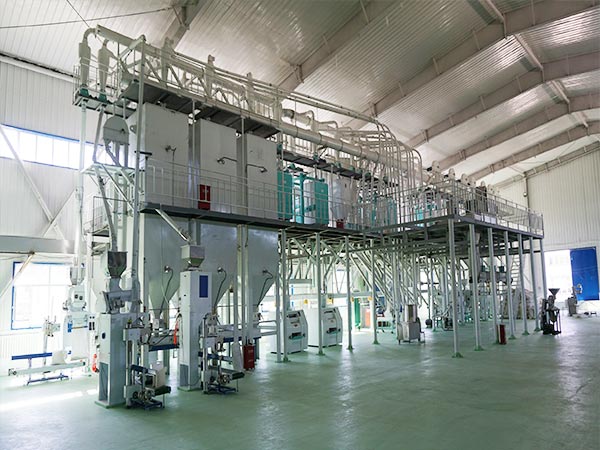

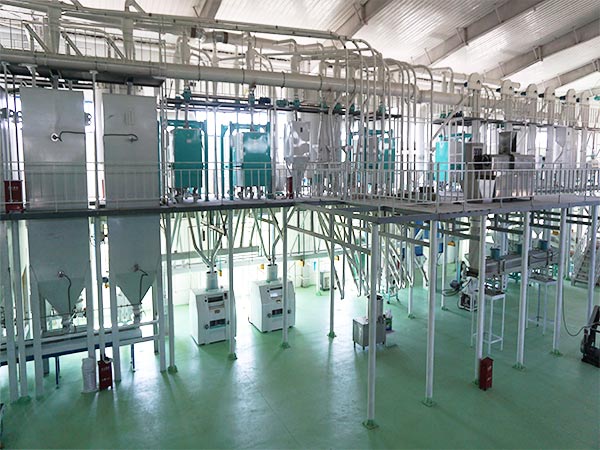

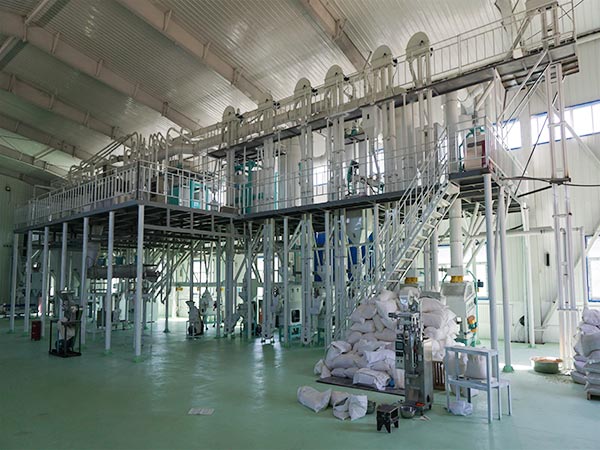

EQUIPMENT DISPLAY

  • 100TPD Corn Grits and Flour Production Line
  • 100TPD Corn Grits and Flour Production Line
  • 100TPD Corn Grits and Flour Production Line

FINISHED PRODUCTS

100TPD Corn Grits and Flour Production Line FINISHED PRODUCTS

Technical Index

  1. End products: corn grits, corn flour and corn bran.

  2. Yield rate: grade corn grits, grade corn flour 25-30%. Corn grits and corn flour total yield rate: 75~80%。

  3. End products index:

  A. Corn flour fineness:40-200 meshes(the flour fineness is adjustable)

  B. Sand content:<0.02%

  C. Magnetic metal content:<0.003/kg

  D. Moisture:storage type 13.5-14.5%

  E. Fat content:0.5—1%

  F. Appearance and taste:even granularity, golden color, smooth kernels, fine powder, pure and natural taste.
