GRAIN PROCESSING PLANT EQUIPMENTMANUFACTURER IN CHINA
Which machine are you looking for?
Corn/Maize Processing Plants

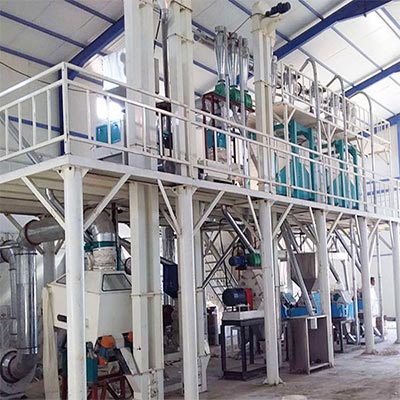

30T/24Hour Maize Flour Milling Machine with Hammer Crusher

30T/24Hour Maize Flour Milling Machine with Hammer Crusher

Finished product:grade 1 maize flour, fine maize flour

Production capacity:This series contains different models including 15TPD, 30TPD, 50TPD

Core equipment:Pre-cleaning and cleaning equipment, Degerminator, Milling Equipment, Packing, Dedusting System.

We Can Supply

PROCESS OVERVIEW



Description

  30ton Maize processing plant or maize milling plant includes maize cleaning, maize peeling, maize grinding, measuring and packaging sections.

  1)Maize cleaning

  Maize cleaning(separation, aspiration, destoning and dampening): cleaning process using vibrating sieve, destoner, magnetic separators for drying cleaning. Use American design degerminator to get whole pcs germ,and use gravity table to getting the maize germ.

  We use double screw damper for keeping moisture the maize. microcomputer control the water damper. add water to ensure a more accurate and uniform water,prevent free water; the use of degerminator for peeling maize into small pieces and embryo separated in order to ensure quality and by fully mechanized and use.

       2) Degermination Section of maize milling machine: (polishing, crushing and grading);

  3) Milling technology

  Milling process us light maize milling subdivision research methods, use of advanced maize milling and sifting equipment to ensure that its process effect, Purification can separate the fine skin and broken germs by the combined effect of screening and winnowing. Using a set of pneumatic conveying systems, five blower air system, the process can also produce 2-4 kinds of high-quality final products. the fat content of not more than 1%.

  4) Measuring and packaging section

  The warehouse can reduce the amount of labour used. Measuring and packaging can adopt manual or electrical measuring and packaging according to actual needs, like 25KG/Bag flour auto-packing; 50KG/Bag bran auto-packing;

  Staff assignments

       We will also suppler engineer to install the machine for you and training your workers how to operate machines, and teach workers how to maintain the machine. According to the conventional business daily processing 30 tons of maize flour mill, the general annual 350days at full capacity, three shifts of production, need every single day every shift one miller 3 workers.

  1.Office in Kenya:

  Address: Mudher Industrial Park, Off Mombasa Road, Next to Soham Petrol Station, Nairobi, Kenya

  Contact: Emma

  Email: wintone13@wintonemachinery.com

  2.Office in Uganda:

  Address:PEOPLE’S PLAZA, Opposite Total Petrol Station – Arua Park MADHVANI FOUNDATION BUILDING, Opposite NEMA House – Jinja Road

  Email: wintone16@wintonemachinery.com

  3.Office in Ethiopia:

  Address: No.4 Floor, Yobex Building, Mexico Area, Addis Ababa, Ethiopia

  Contact: Jaspher

  Email: info@wintonemachinery.com

FEATURE

  • Full Technology Design

    We supply you complete line machine from cleaning, to degerminting, milling, packing, controlling system to produce super white maize meal.

  • Spare Sarts & Training Available

    Supply you pipes, platform, cables from control penal to each machine, and one year spare parts, what you need supply is workshop, electric, water and 1 miller, 4-6 workers.

  • Automatic Control System

    The control system we use PLC touch screen, the technical flow will show on the screen, and achieve one button boot device, more intelligent.

  • High Efficient and Quality

    The pips in milling system will be stainless steel, more durable and longer lasting.Moisture damper Stainless Steel, Bin- direction screw, prevent free water, make sure the maize degerminating easy.

EQUIPMENT DISPLAY

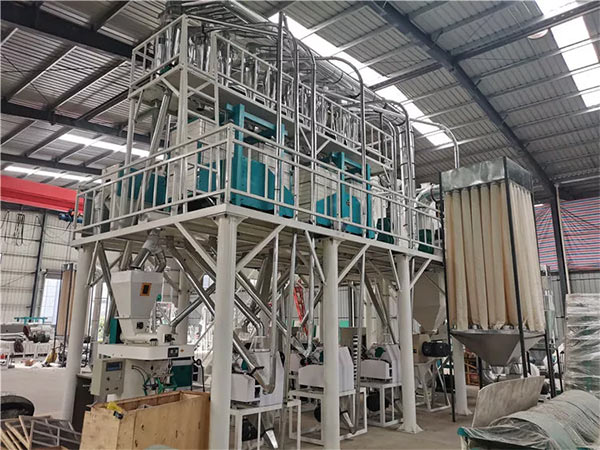

  • 30T/24Hour Maize Flour Milling Machine with Hammer Crusher
  • 30T/24Hour Maize Flour Milling Machine with Hammer Crusher
  • 30T/24Hour Maize Flour Milling Machine with Hammer Crusher

FINISHED PRODUCTS

30T/24Hour Maize Flour Milling Machine with Hammer Crusher FINISHED PRODUCTS

Capacity

Power(kW)

Workshop Area (M) Finished Product

10T/24h

40

8.4x3.4x3.8

grade corn flour

30T/24h

100

15x7x4.5

grade corn flour and grits

50T/24h

160--200

26.4x7x7.5

grade corn flour and grits

100T/24h

250--300

22.4×10×26

grade corn flour

200T/24h

530

35×11×26

grade corn flour
