MTPS Series Pigeon Pea Peeling Machine

MTPS Series Pigeon Pea Peeling Machine

Application:Pigeon pea processing

Capacity:1000-1500kg/hour

Description

  MTPS Pigeon pea peeling machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.

  First, pigeon pea sent to the propelling chamber through charging regulation device where the spiral pusher conveys them to emery roll whose sharp appearance cuts the bran with some speed, making the corn particles rub against the sieve plate, so as to peel the materials. The outlet is equipped with air suction inlet to further cool down the bean and clean the finished product for the second time.

FEATURE

  • Reliable discharging of chickpea bran

    It has uniform end products and reliable quality. There are different adjustment choices for you even in the peeling process.

  • High sanitation standard

    It has the powerful cooling system and ensures the high sanitation standard.

  • High processing efficiency

    The Peeling Machine has moderate peeling process and high processing efficiency.

  • Easily maintained and operated

    Easily maintained and operated.Quick-replaceable sieve plate and other parts.

EQUIPMENT DISPLAY

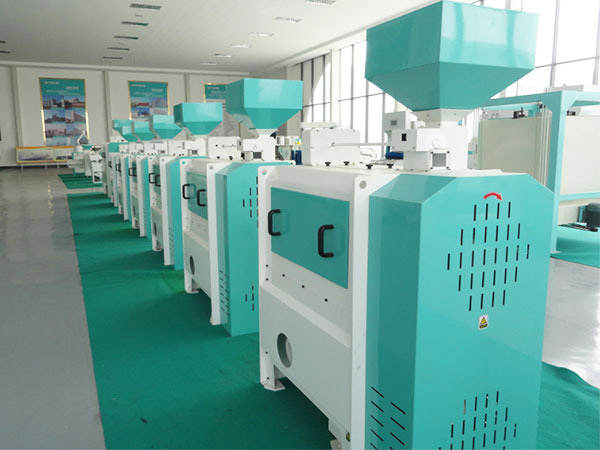

  • MTPS Series Pigeon Pea Peeling Machine
  • MTPS Series Pigeon Pea Peeling Machine

FINISHED PRODUCTS

MTPS Series Pigeon Pea Peeling Machine FINISHED PRODUCTS

TECHNICAL INDEX

Model Emery Roll
Diameter
(mm)
Emery Roll
Length
(mm)
Spindle
Speed
(r/min)
Yield
(t/h)
Power
(kW)
Air Volume
(m³/h)
Size
(L*W*H)(mm)
MTPS-18D/A Φ180 660 1300 1~1.5 22 1500-1800 1370×700×1900
MTPS-25D/A Φ240 660 1050 2-3 30 1800-2100 1515×660×2100
