MTPS Kidney Bean Peeling Machine

MTPS Kidney Bean Peeling Machine

Application:Bean and pulses processing

Capacity:1000-3000kg/h

  Description

  MTPS25S White Kidney Bean Skin Peeling Machine can be used as the supporting equipment in bean processing technology or as the single peeling equipment.

  The machine is used in the peeling process for bean processing and primary and further peeling process for food processing enterprises. It can be used in series or in parallel in complete processing line according to technological demand. This white kidney bean peeling machine can also process red bean, soybean, mung bean, lentil, etc.; it is suitable for different beans peeling just by changing related technical parameters.

 Components

  MTPS25S White Kidney Bean Skin Peeling Machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.


FEATURE

  • Intelligent Desigh and High Automatic

    Easy to operate, fast separation time, saving labor, productivity is superior to manual method (for maximum separation, soya beans should be dried).

  • Higher percentage of peeling rate

    The peeling rate ≥95% ensures good product. High quality , whole size green mung beans .no wastage .

  • Materials application

    The bearing of main shaft is sealed by skeleton rubber oil sealing cup to prolong the service life of bearing

  • Safe operation

    All working parts are enclosed so there is less risk of injury during operation or while making adjustments.

EQUIPMENT DISPLAY

  • MTPS Kidney Bean Peeling Machine
  • MTPS Kidney Bean Peeling Machine

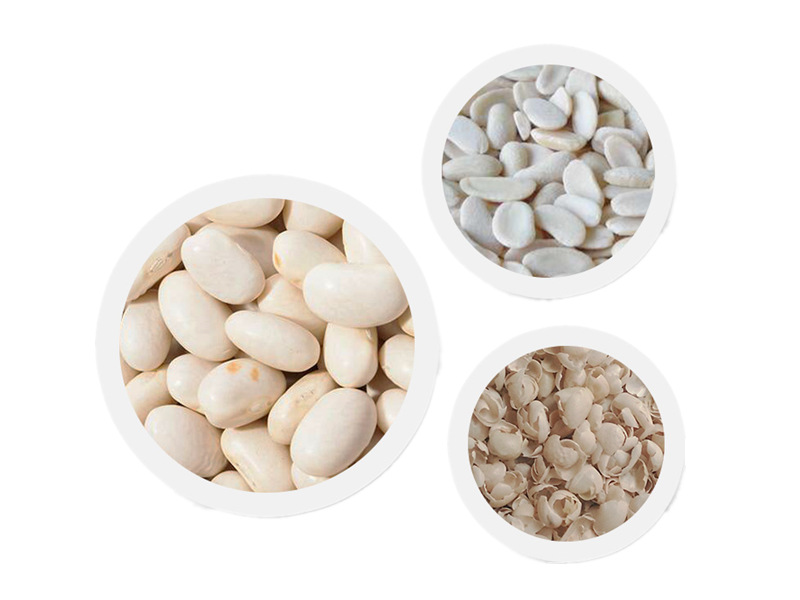

FINISHED PRODUCTS

MTPS Kidney Bean Peeling Machine FINISHED PRODUCTS

TECHNICAL INDEX

Model Emery Roll
Diameter
(mm)
Emery Roll
Length
(mm)
Spindle
Speed
(r/min)
Yield
(t/h)
Power
(kW)
Air Volume
(m³/h)
Size
(L*W*H)(mm)
MTPS-18D/A Φ180 660 1300 1~1.5 22 1500-1800 1370×700×1900
MTPS-25D/A Φ240 660 1050 2-3 30 1800-2100 1515×660×2100
