FSFG Series High Square Plansifter

FSFG Series High Square Plansifter

Application:It is widely used in grading and screening of granular materials or powders in grain processing enterprises.

Capacity:10-160ton/h

Description

High square screen is mainly used for grading screening of granular materials or powders in grain processing enterprises, and can also be used as inspection screen before packaging and bulk.
The screen lattice is easy to clean. In the process of screening and classification, different material channels are isolated from each other with good sealing performance, which can prevent material string, reduce dust rising, and ensure safe production.
The internal unique design of the screen bin pressing device can ensure a good sealing performance, prevent the string and leakage of materials, and the screen lattice is easy to clean.

FEATURE

  • Production process safety

    Good sealing performance, prevent the string material, at the same time can also reduce the dust, ensure safety in production.

  • Unique design

    The internal unique design of the screen bin pressing device can ensure a good sealing performance, prevent the string and leakage of materials, and the screen lattice is easy to clean.

  • Advanced technology

    The equipment is applied with the most advanced technology and the physical technology can achieve the grading and screening of grain materials or powders in grain processing enterprises. The equipment is automatic production and mature in technology.

  • Low energy consumption

    The production line adopts excellent automation solutions. It can reduce the labor cost and production cost to the greatest extent, improve the production efficiency and reduce the energy consumption.

EQUIPMENT DISPLAY

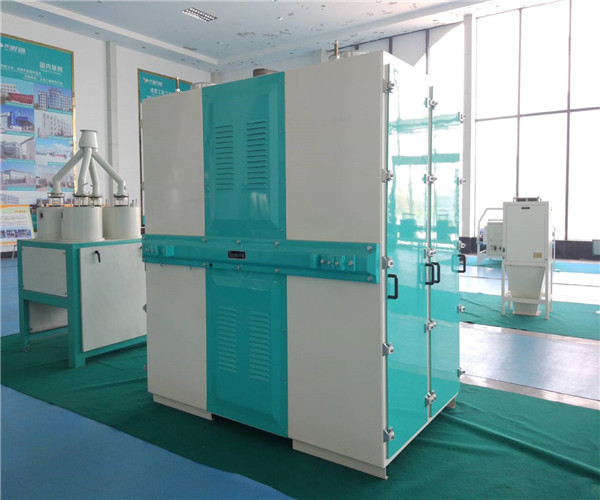

  • FSFG Series High Square Plansifter

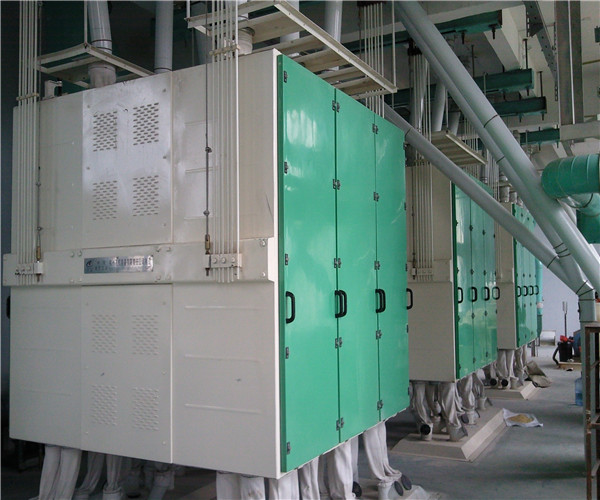

  • FSFG Series High Square Plansifter

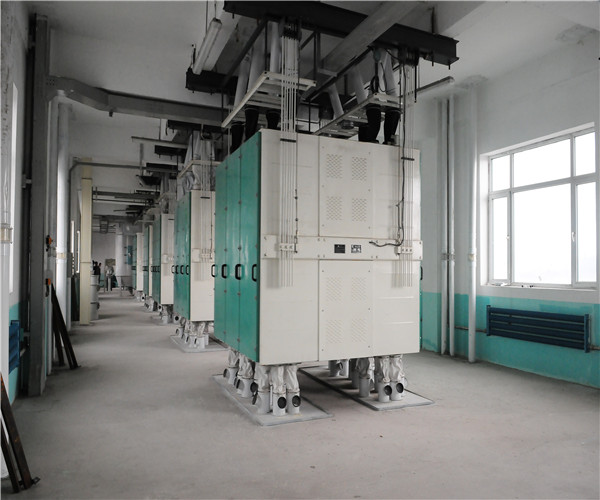

  • FSFG Series High Square Plansifter

TECHNICAL INDEX

Type Yield(t) Rated voltagea(v) Power of main engine(kw) Weight(kg) Screen box Height(mm)
FSFG4×24 20 380 3+5.5 6600 1580×840×1400
FSFG6 ×24 80 380 4+7.5 8100 2190×1200×1820
FSFG8 ×24 160 380 7.5+11 11200 4500×1600×2920
