TQNF-15T  Combined Corn Grits and Flour Unit

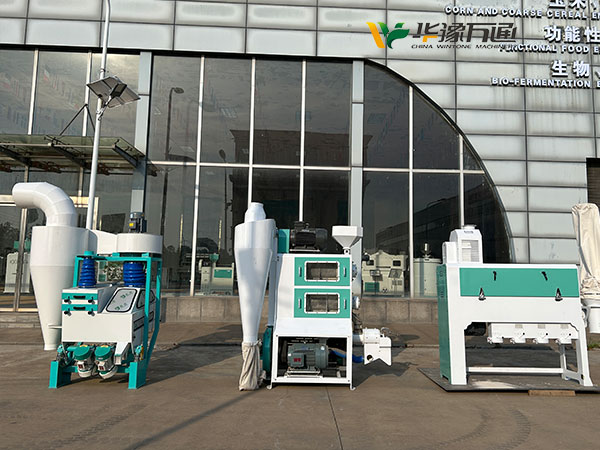

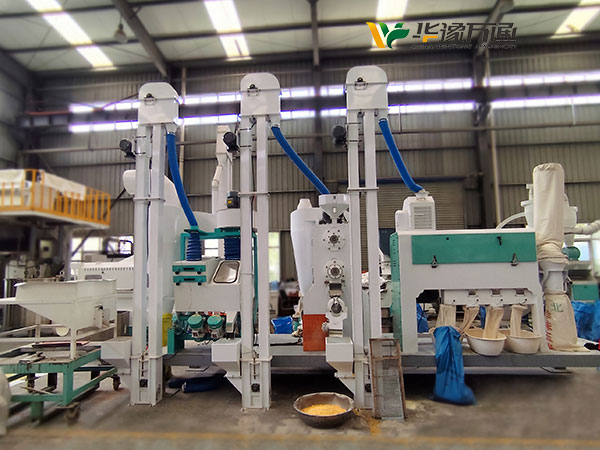

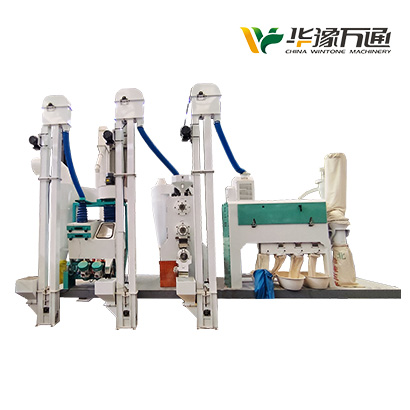

TQNF-15T Combined Corn Grits and Flour Unit

Application:Corn cleaning, corn peeling, corn grits, corn flour



TQNF-15T multifunctional corn grits and corn flour whole set of equipment adopts multi-module and split type of streamlined design. The machining process is controlled by complete automation and can realize continuous operation in 24 hours. It is suitable for various kinds of grains processing, such as corn processing, soybean processing, mung bean processing, wheat processing, millet processing and sorghum processing.

work process

The unprocessed grains are put into the feeding hopper of the single mechanical elevator and is conveyed to TQS-50 cleaning and stone removing combination machine by TTG19/8D single mechanical elevator. Then it can remove the big and small impurities and stones with similar gravity with grains from the raw material. The net grains flow into the mechanical elevator hopper of NFZ-280G peeling and polishing combination machine. Then it is conveyed to NFZ-280G peeling and polishing combination machine by the combination elevator for peeling and polishing. After peeling and polishing, the grain kernels flow into the elevator hopper of YMSF-404 four-size corn grits machine. And then they are conveyed to YMSF-404 four-size corn grits machine by the conveyor for milling. After milling, the corn grits and flour is screened by the cylinder classifying screen and the big, medium and small grits and flour from the screen can be packaged. The exhaust fan aspirates the corn bran into the centrifugal spiral dust remover for corn bran collection.


  • Automated working process

    Streamlined modular design adopts grain cleaning, two sections of peeling, one section of polishing. The whole process is completely automated.

  • Save processing cost

    The whole processing set just needs one worker for electronic control and one worker for packaging. This can save lots of labor charge.

  • High efficiency

    It has small power, high efficiency, easy operation and maintenance.It adopts modular design and can process different grains according to requirements.

  • Dry method peeling

    It adopts dry method peeling, and doesn’t need water in processing. Compared with wet method, it is more sanitary.


  • TQNF-15T  Combined Corn Grits and Flour Unit
  • TQNF-15T  Combined Corn Grits and Flour Unit


TQNF-15T  Combined Corn Grits and Flour Unit FINISHED PRODUCTS


Model Capacity(t/h) Power(kw) Rated voltage(v) Spindle speed(r/min) Weight(kg) Dimension(mm)
TQNF-15T 0.8 42.2 380 1042 3220 6460×1060×3400
