NF Single Grain Flour Milling Machine

NF Single Grain Flour Milling Machine

Application:Making flour for maize, wheat, rice, sorghum, millet, beans,other grain and seeds

Capacity:200-800kg/h as required

  DESCRIPTION

  NF Single Grain Flour Milling Machine is mainly used in small size of coarse grain flour milling plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and cost-effective. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

  Working principle

  The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield.

  It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.

FEATURE

  • High degree of automation

    High degree of automation , reasonable structure, stable running, reliable features.

  • Low energy consumption

    low energy consumption, high efficiency, low production cost, good benefit.

  • Low noise

    Low noise, no dust, safety and sanitation, energy conservation and environment-friendly.

  • Easy to install

    Easy to install and convenient maintenance.

EQUIPMENT DISPLAY

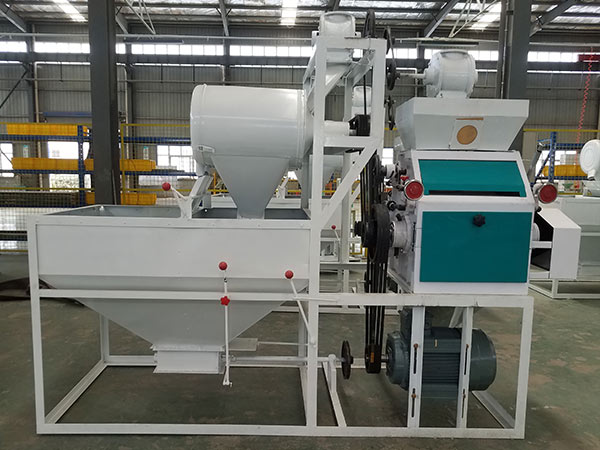

  • NF Single Grain Flour Milling Machine

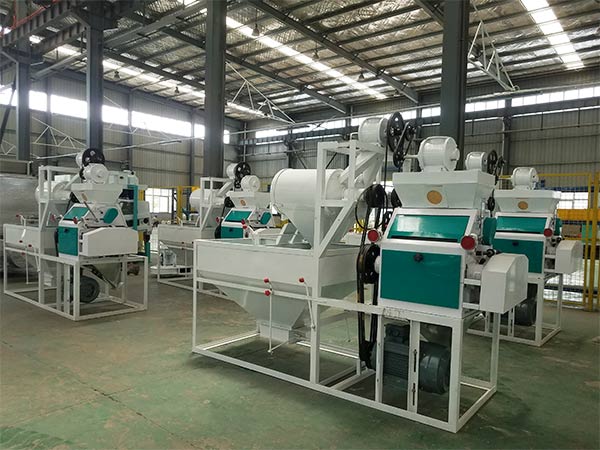

  • NF Single Grain Flour Milling Machine

FINISHED PRODUCTS

NF Single Grain Flour Milling Machine FINISHED PRODUCTS

TECHNICAL INDEX

Model Yield(kg/hour) Power (kw) Rated voltage(v) Spindle Speed(r/min) Outline Size(mm)
NF-2235 wheat: 100-200kg/h; Corn: 50-100kg/h 7.5 380 1042 2200×800×3300
NF-2240 wheat: 200-300kg/h; Corn: 100-150kg/h 11 380 1042 2200×900×3400
NF-2250 wheat: 300-400kg/h; Corn: 150-200kg/h  15 380 1042 2200×900×3500
